Types of Mooring Winches For Ships

Types of Mooring Winches For Ships

Column:FAQ    Date:2020/10/12 15:32:34    Viewed:

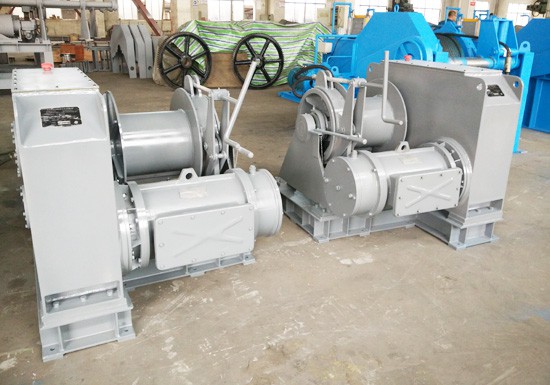

Electric mooring winch

Electric mooring winch for ships has low operating cost, simple operation and installation, as well as low maintenance cost. The design and arrangement of the winch is adapted to your needs and fit every possible boat type. Automation and remote control functions are available to ensure more efficient and safe operation.

Electric <a href=Mooring Winch"/>

Electric mooring winch for ships parameters:

Load capacity: 1 ton – 100 ton

Drum capacity: 200m- 600m

Speed: ≤15m/min

Drum No.: single or double

Protection level: IP 56

Hydraulic mooring winch

If the electric power is unavailable or hard to obtain in your working area, a hydraulic powered winch is a better choice. The winch has high strength and durability, ideal for the most demanding tasks in marine and offshore applications. Hydraulic mooring winch is more complex in structure, thus requiring more maintenance care. The main components of hydraulic winch include hydraulic motor, mooring drum, brake system (manual or hydraulic type), clutch, warping head (optional), gypsy wheel (for combined mooring winch).

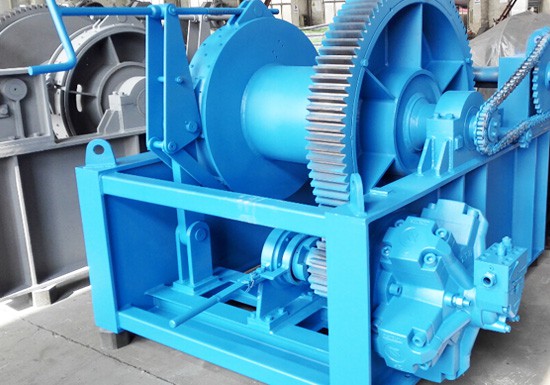

Hydraulic mooring winch

Hydraulic mooring winch parameters:

Load capacity: 10 ton – 50 ton

Drum capacity: 100m- 1000m

Speed: ≤15m/min

No. of drum: single

HPU: provided as customized

EME was founded in 2006 and be listed in 2017. We are a professional manufacturer of marine windlass,winch, capstan and deck outfittings for seagoing vessels. All products can be customized by our experience engineering group.
