Recently, TaiXing Expansion Marine Equipment Co., Ltd. has another good news in the field of marine equipment. It has successfully completed the 10T hydraulic double-drum winch. The entire process including testing, packaging and warehousing has been completed and will be shipped out today.

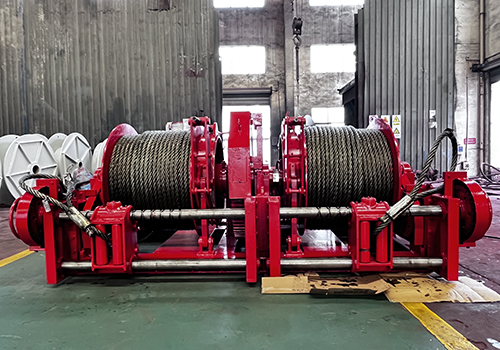

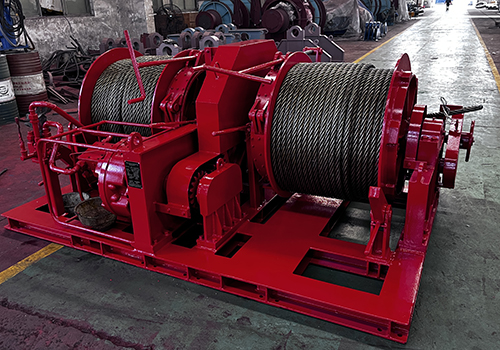

The 10T hydraulic double-drum winch is a hydraulic-driven heavy-duty traction equipment with a rated single rope tension of 100kN and dual-drum independent/synchronous dual-mode control. The power comes from the hydraulic pump/host hydraulic system, and the drum operation is realized by a low-speed high-torque hydraulic motor + planetary deceleration. It comes standard with normally closed hydraulic brake + manual emergency brake, which is highly safe.
Core advantages:
The dual drums can operate simultaneously/separately (such as ship anchoring + mooring, engineering dual-point synchronous traction), hydraulic stepless speed regulation, stable at low speed, large starting torque under heavy load, resistant to harsh working conditions (dust, moisture, explosion-proof/anti-corrosion customization), compact structure, suitable for small spaces on ships/underground/in the wild.
Power and transmission: hydraulic pump set, low-speed high-torque hydraulic motor (plunger/cycloid), planetary gear reducer.
Drum assembly: double drum, shaft system, drum clutch (independent/synchronous switching), rope arranging device (optional, anti-tampering rope).
Braking and Safety: Hydraulic brakes, manual backup brake, counterbalance valve, overload/overpressure protection.
Control: hydraulic valve group, operating handle/remote control, instrument display (pressure, speed, tension).
Base and frame: welded structure, the flange can be customized according to marine/vehicle/fixed foundation.
In the manufacturing process, the company strictly follows international quality management system standards. From the selection of raw materials to the meticulous control of each production process, to the strict inspection and testing of finished products, every link strives for excellence. The company has introduced advanced production equipment and testing instruments to conduct comprehensive testing of various performance indicators of the winch to ensure that the delivered 10T hydraulic double-drum winch meets or even exceeds industry standards, winning the trust of customers with its excellent quality.
TaiXing Expansion Marine Equipment Co., Ltd., has a factory area of more than 20,000 square meters, a workshop area of more than 6,000 square meters, and an area of more than 4,000 square meters of office and auxiliary facilities. The test bench designed and manufactured by the company can be used for 350T dynamic load tensile test and 800T static load. Tensile test, can complete customized marine machinery products, welcome to cooperate.
