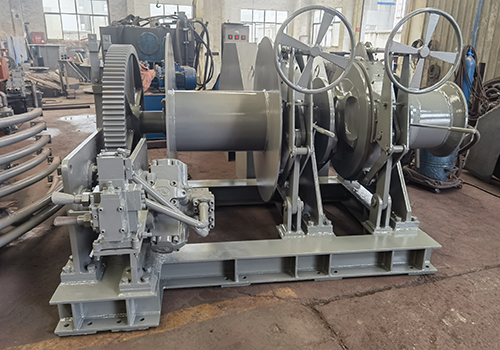

38MM ANCHOR WINDLASS&MOORING WINCH integrates anchoring, anchoring and mooring functions, and is suitable for ships' anchoring at ports, deep-sea operations and anchor chain operations in emergency situations. Its dual anchor sprocket design supports dual anchor synchronous operation to improve operation efficiency and safety.
38MM ANCHOR WINDLASS&MOORING WINCH corresponds to 60KN rated tension, which meets the requirements of ship specifications. According to the mechanical engineering manual, the rated tension of the anchor machine must meet the formula:
Level A2-level geared anchor chain: P≥42.5d2+(D−82.5)×0.27 (N)
(d is the diameter of the anchor chain, D is the depth of the anchorage)
Taking the 82.5m water depth as an example, 60KN (about 6 tons of force) can meet the anchoring requirements of 38mm A2-level anchor chains and leave a safety margin.
The rated speed is 9m/min, which meets the requirements of the specification for "average speed is not less than 9m/min". The anchoring operation can be completed continuously within 30 minutes (such as pulling from 82.5m water depth to 27.5m). Suitable for anchoring and mooring operations of small and medium-sized ships. Overload protection devices are usually designed to ensure that the equipment can operate safely under short-term overload conditions.
TaiXing Expansion Marine Equipment Co., Ltd., has a factory area of more than 20,000 square meters, a workshop area of more than 6,000 square meters, and an area of more than 4,000 square meters of office and auxiliary facilities. The test bench designed and manufactured by the company can be used for 350T dynamic load tensile test and 800T static load. Tensile test, can complete customized marine machinery products, welcome to cooperate.
