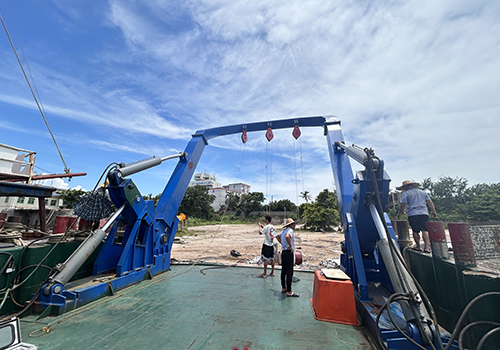

15T Type A Crane

Request an Anchor Windlass Quote

Marine crane 15T A-type crane is a type A-type gantry crane (or similar structural lifting equipment) with a rated lifting weight of 15 tons.

A-type structure: The legs of the A-type crane are in the shape of "A" and the legs on both sides are tilted outwards to form a stable triangular structure. This design enhances the crane's ability to overturn and is suitable for use outdoors or in high wind conditions.

Rated lifting weight 15 tons: The maximum weight that the equipment can be safely lifted is 15 tons, suitable for medium-sized lifting operations.

Door frame: Usually adopts a door frame structure, consisting of main beams, legs, lower beams, etc. The span can be adjusted according to needs and is suitable for material handling in open fields.

The operation of the crane is a handle installed on the operating table, controlled by proportional valves, and can be operated in a linkage manner at the rated load, and the speed decreases.

Crane design conditions: 5° horizontal tilt/2° longitudinal tilt, rotation range<360°, or 360°, no rotation limit.

Crane features:

1. During navigation operations, the boom must always be shelved horizontally.

2. The crane must have an uplift limit to help with safe operation.

3. The crane is equipped with an emergency stop device to reduce the risk of accidents as soon as possible.

4. The crane is equipped with a manual emergency release device, which can perform emergency operations during operation.

5. The A-type lift is an electric or hydraulic drive method and can be easily operated under different environmental conditions.

6. Power supply: 380V/50Hz or 440/60Hz
