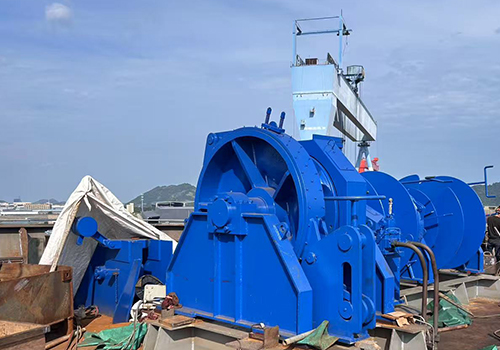

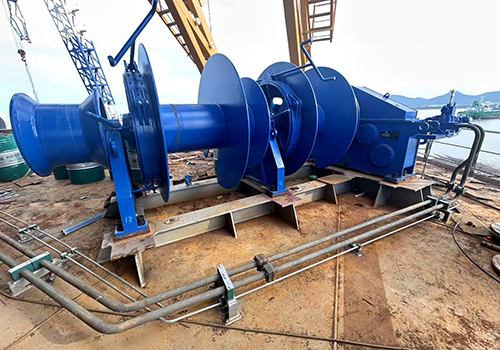

73mm ANCHOR WINDLASS&MOORING WINCH

Request an Anchor Windlass Quote

The 73mm ANCHOR WINDLASS&MOORING WINCH is a key equipment used for ship anchoring and mooring operations. Its design requires the dual functions of anchor chain operation and cable retraction and retraction.

The diameter of the anchor chain: 73mm (usually corresponding to the AM3-level anchor chain, with a breaking load of about 950kN).

Anchor lifting capacity: It must meet the anchoring speed ≥9m/min (typical value), overload tension ≥1.5 times the rated load (such as 380kN overload design).

Anchor depth: It must cover water depths above 82.5m (some models support 100m+).

Rope capacity: It must match the length requirements of the ship's cable (such as above 220m).

Cable diameter: usually suitable for Φ64mm (PP material) or larger specifications.

Load capacity: The first layer of reel workload is ≥147kN, and the support load is ≥416kN.

Power form: hydraulic drive is the main (electrical is available for some models), and the working pressure is ≥14MPa.

Speed reduction mechanism: planetary gear reducer (high transmission efficiency, low noise).

Braking system: hydraulic disc brake (braking torque ≥200kN·m), manual emergency braking device.

The selection of 73mm ANCHOR WINDLASS&MOORING WINCH  combiner requires comprehensive consideration of load capacity, environmental adaptability, maintenance cost and system integration. For ocean-going ships, it is recommended to choose hydraulically driven models that support dual-anchor sprockets and double-roller configurations; for special ships with high reliability requirements, it is recommended to choose products with redundant braking systems and automated control functions. Regular maintenance and standardized operations are the key to extending equipment life and ensuring operational safety.
